Application

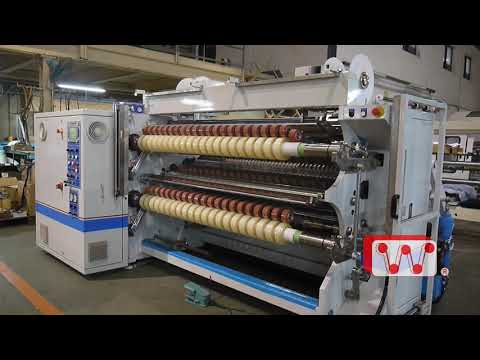

2 shafts center-surface type winding, suitable for slitting various PI, PC, PET, printing & packing films, etc.


Specifications
Machine Width 1.3M/1.6M
Max. Unwind O.D 800mm
Rewind Core I.D 77mm
Min. Slitting Width 50mm
Max. Rewind O.D 400mm / 600mm
Machine Speed 250M / Min

Features
  1. Unwind base for rewind 400mm model is a connected type, and for rewind 600mm model is a separated type.
  2. Unwind tension is controlled by powder brake with auto tension controller.
  3. Driven by connective 3 A.C motors, the rewind tension system cab be converted and controlled by the air shaft or
    the differential shaft.
  4. Rewind shaft tension is controlled by differential core sleeve, which is capable to better control of tensions on all finished rolls to overcome uneven web thickness.
  5. Rewind is a center type winding, the rewind pressure roller will automatically keep moving away from the rewind shaft as rewind O.D rolls bigger.
  6. Finished rolls are unloaded by a connected swing out type unloading rack for ease of core unloading.
  7. Slitting by shear cutter and razor blade, which are interchangeable for various material converting. Material trimming is a traverse type winding unit, which collects waste materials more efficiently.
  8. Central system is controlled by PLC unit with LCD touch panel, which is user friendly for all data setting.

Optional Parts
Unwind Pick-Up Lift
For loading jumbo roll on the machine quickly and time saving. ( for shaft core type)
