Separated unwind base with shaftless hydraulic core chuck is available for fast and effective performance on jumbo roll changing.
PRODUCTS
Video
Application

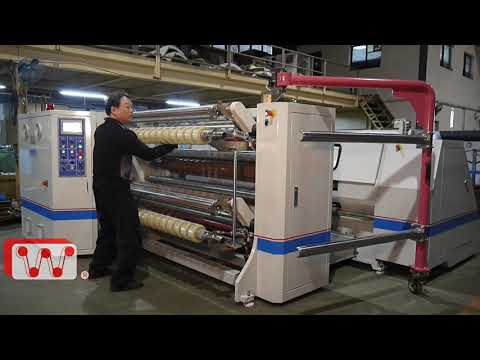

2 shafts center type winding, suitable for slitting various self-adhesive tapes.
Specifications
| Machine Width | 1.3M/1.6M |
| Max. Unwind O.D | 1000mm |
| Rewind Core I.D | 77mm |
| Min. Slitting Width | 50mm |
| Max. Rewind O.D | 600mm |
| Machine Speed | 300M / Min |
Features
- Equipped with separated shaft type unwind base and auto unwind tension controller.
- Equipped with noise reduction hood for attenuating the production sound. A jumbo roll pick-up lifter is installed for quick loading process and tabbing device is automatically executed after rewind length is reached.
- Driven by connective 3 A.C motors; rewind tension is controlled by either the air shaft or the differential shaft.
- Rewind is a center winding type, as rewind O.D. rolls bigger the pressure roller will move along automatically for flawless rewinding.
- Equipped with leaf type rewind air shaft and connected swing out rack for ease of finished roll unloading.
- Razor blade for various film tapes slitting. Trim unit is a traverse winding type for effective waste collections.
- Central system is controlled by PLC unit with LCD touch panel, which is user friendly for all data setting.
- All electrical devices conform to the European CE regulation for safety operation.
Optional Parts
Special Unwind Base
Air Score Knife
The knife is able to slit paper and cloth tapes.
Web Feeding Control
A motor is added to better control web feeding for extensible materials.
Differential Shaft
Able to adjust core slipping individually to make perfect tensions on each finished roll to overcome uneven web thickness.
Special Trim Unit
Power driven center type traverse winding unit. Suitable for double- sided tape & material with release treatment on the surface.
Unloading Rack
This unloading rack is power control, which is able to switch from vertical to horizontal level for ease of finished roll unloading.
Web Guide Control
To maintain materials wound out on a straight line.
Core Positioning Mold
This device helps to line up paper core in position much efficiently and precisely.
