For loading jumbo roll on the machine quickly and efficiently.
PRODUCTS
Video
Application

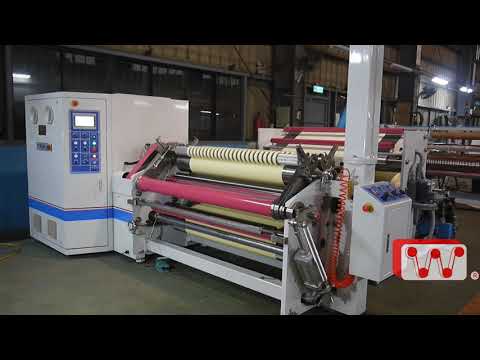

2 shafts center-surface type winding, suitable for slitting/rewinding various papers and films.
(The model for slitting/rewinding various adhesive tapes is EPT)
Specifications
| Machine Width | 1.0M/1.3M/1.6M |
| Max. Unwind O.D | 1000mm |
| Rewind Core I.D | 3” & 6” |
| Min. Slitting Width | 10mm |
| Max. Rewind O.D | 600mm |
| Machine Speed | 250M / Min |
Features
- Equipped with separated shaft type unwind base, auto web guide controller and auto unwind tension controller.
- This model is designed to keep the shortest distance between the slitting device and the rewind section for narrow width slitting and flawless rewinding.
- Driven by connective 3 A.C motors, one for web feeding, two for rewind tension control in which the torque increased automatically as the rewind O.D grows in diameter.
- Center-surface type winding, this winding process has ability to remove excessive air and smooth out finished rolls. The balance of the rewind shaft arm is controlled by an auto air pressure system.
- Central system is controlled by PLC unit with LCD touch panel, which is user friendly for all data setting.
- Slitting by shear cutter, air score knife and razor blade, which are interchangeable for various material cutting.
Optional Parts
Unwind Pick-Up Lift
Unloading Crane
The electric control crane for effective finished rolls unloading.
Special Unwind Base
Separated type with shaftless hydraulic core chuck is available for quick and safe jumbo roll loading.
Core Positioning Mold
This device helps to line up paper core in position much efficiently and precisely.
