HY- MSD

SMALL REWINDER

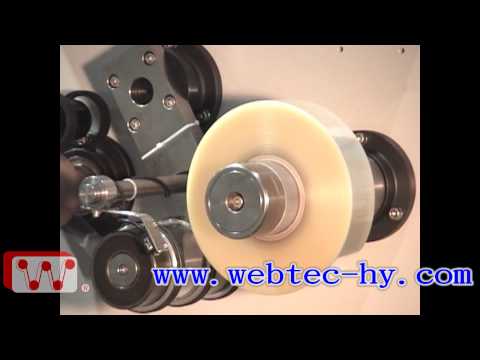

Video

Application

Suitable for winding various tapes from large to small roll and defective finished rolls rewinding.


Specifications
Max. Unwind O.D 450mm
Rewind Core I.D 77mm
Max. Rewind O.D 450mm
Machine Speed 300M / Min

Features
  1. The main feature of this model is to rewind defective rolls into profits again. It is designed to rectify rolls and to minimize wastes.
  2. Equipped with free moving unwind shaft & adjustable edge guide roller for defects alignment.
  3. Rewind tension is controlled by servo motor, which is adjustable on different requests.
  4. Center type rewinder ; as rewind O.D. increases rewind lay on roller will move along automatically to maintain stable and flawless rewinding.
  5. Able to rewind 2 rolls at a time to obtain optimum productivity.
  6. PLC programmable control system to incorporate with user friendly LCD touch screen interface for all data setting.
